Molybdenum and Molybdenum alloys Bar and Rod

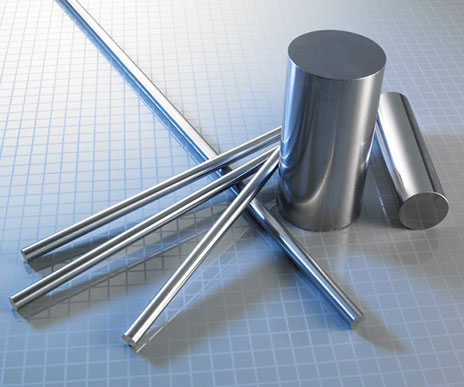

Product name: Molybdenum Bar and Rod
Standard: ASTM B387
Material: Mo >99.95%
Density: 9.8 ~ 10.2g/cc

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Application:

Molybdenum bar is mainly used in drawing thin molybdenum wire, molybdenum electrode and steel-making additives. Meanwhile, molybdenum bar is also widely used in the furnace industry for radiation screens, elements, and sintering trays

Surface Finish:

Black Surface - Surface is "as swaged" or "as drawn"; retaining a coating of processing lubricants and oxides.

Cleaned - Surface is chemically cleaned to remove all lubricants and oxides.

Shiny finish - Surface is lathe shinny or polished.

Spray sand surface

Specification:

Molybdenum round bar is manufactured as random length pieces or cut to customers' desired lengths in diameters ranging from 0.080 inches to 6.00 inches. Please view Molybdenum Rod to see our standard sizes of round bar. Below are most of the standard sizes of our molybdenum rectangular bars. If you do not see the size of molybdenum bar that you require, please feel free to contact us.

Width	Thickness	Length	Length Tolerance
15mm	15mm	600mm	+1mm, -0
20mm	20mm	1000mm	+1mm, -0
45mm	45mm	1200mm	+2mm, -0
60mm	60mm	1500mm	+3mm, -0

Diameter	Length	Diameter Tolerance	Length Tolerance
0.08" ~ 0.40"	< 315"	±0.005"	+0.08", -0
0.40" ~ 0.80"	< 118"	±0.010"	+0.08", -0
0.80" ~ 4.00"	< 78"	±0.015"	+0.08", -0
>4.00"	< 40"	±0.025"	+0.08", -0

Composition:

Grade	The impurity content is not more than %
Grade	Fe	Ni	Al	Si	Mg	C	N	O
Mo-1	0.01	0.005	0.002	0.01	0.005	0.01	0.003	0.008
Mo-2	0.01	0.005	0.005	0.01	0.005	0.01	0.003	0.02
