1.Molybdenum and Molybdenum alloys Tubes and Pipes

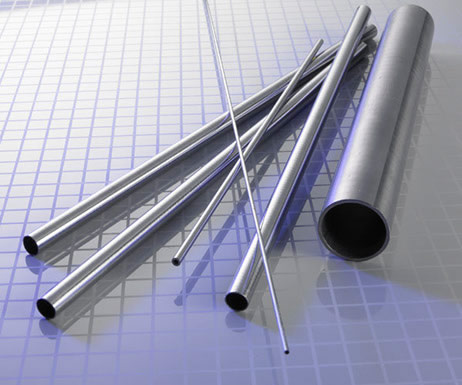

Product name: Molybdenum Tube/Pipe
Standard: ASTM B386
Material: Mo >99.95%
Density: >10.2g/cc

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Molybdenum tube (pipe) can be used at service temperature up to 1,800 degrees.

Used in components of electron tube, heaters of high-temperature furnaces, thermocouple retainers.

Specification:

We can supply seamless or welding molybdenum tube and pipe at very competitive prices of good quality. Below are most of the standard sizes. If you do not see the size of molybdenum tube that you require, please feel free to contact us.

Name	Outer Diameter (mm)		Wall Thickness (mm)		Length (mm)
Molybdenum Tube/Pipe	Size	Tolerance	Size	Tolerance	Size	Tolerance
	<100	±1.0	<1	±0.1	<100~150	±2.0
	100~200	±2.0	1~3	±0.25	150~350	±3.0
	200~300	±3.0	3~10	±0.5	350~650	±4.0
	300~400	±5.0	10~20	±1.0	650 ~ 2000	±5.0
	>400	±7.0	20 ~ 30 max	±1.0	2000 ~ 6000 max	±5.0

Molybdenum and Molybdenum alloys Sheet and Plate

Application: Molybdenum sheet is used for making electric light source parts, components of electric vacuum and electric power semiconductor. It is also used for producing molybdenum boats, heat shie

Molybdenum and Molybdenum alloys Bar and Rod

Application: Molybdenum bar is mainly used in drawing thin molybdenum wire, molybdenum electrode and steel-making additives. Meanwhile, molybdenum bar is also widely used in the furnace industry for

Mo-La product

Description: Molybdenum Lanthanum(Mo-La is a useful and important molybdenum alloy composed by adding lanthanum oxide in molybdenum. Molybdenum Lanthanum(Mo-La) has the properties of higher temperatu

TZM product
