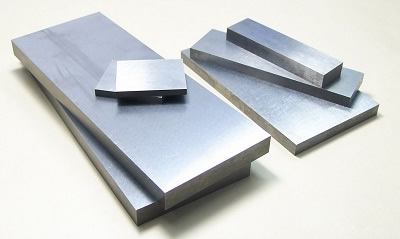

Molybdenum and Molybdenum alloys Sheet and Plate

Standard: ASTM B386
Material: Mo >99.95%
Density: >10.2g/cc

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Application:

Molybdenum sheet is used for making electric light source parts, components of electric vacuum and electric power semiconductor. It is also used for producing molybdenum boats, heat shield and heat bodies in high temperature furnace.

Specification:

We produce high quality molybdenum sheet as one of our hot product. We offer 3,000-5,000 kg molybdenum sheets per month and small order is also acceptable. Below are most of the standard sizes. If you do not see the size of molybdenum sheet that you require, please feel free to contact us.

Sheet

Thickness	Max. Width	Max. Length	Thickness Tolerance
< 0.004"	12"	72"	+/- 0.0004"
0.004" ~ 0.006"	16"	96"	+/- 0.0005"
0.006" ~ 0.010"	24"	132"	+/- 10%
0.010" ~ 0.090"	30"	132"	+/- 0.005"

Plate

Thickness	Max. Width	Max. Length	Thickness Tolerance
0.090" ~ 0.200"	30"	114"	+/- 0.008"
0.200" ~ 0.250"	24"	84"	+/- 2%
0.250" ~ 0.500"	24"	42"	+/- 2%
>0.500"	24"		+/- 2%

Surface Condition:

Surface can be supplied in a shiny, matte, satin, or as-rolled condition; dependent upon thickness and width parameters.

Heat treatment:

Molybdenum flat products are rolled and annealed to provide the optimum condition for the desired end use.

Composition:

Brand		Mo-1	Mo-2	Mo-3
Mo(%)		99.95	99.95	99.95
Other Element Content(%) ≤	Pb	—	—	0.001
	Bi	—	—	0.001
	Sn	—	—	0.001
	Sd	—	—	0.001
	Cd	—	—	0.001
	Fe	0.005	0.006	0.010
	Ni	0.002	0.003	0.005
	Al	0.002	0.002	0.005
	Si	0.003	0.003	0.010
	Ca	0.002	0.002	0.005
	Mg	0.001	0.002	0.003
	P	0.001	0.001	0.002
	C	0.005	0.008	0.010
	O	0.003	0.005	0.050
	N	0.001	0.003	-
Use for example		Precision Manufacture	Standard Manufacture	Alloy Addition
