Ti 15V-3Cr-3Sn-3Al (Ti 15333)

Titanium Alloy 15-3-3-3 (Ti metal 15-3) is a metastable beta titanium alloy that offers substantial weight reductions over other engineering materials if used In the solution treated condition. It has excellent cold formability. In the aged condition, the alloy has high strength.

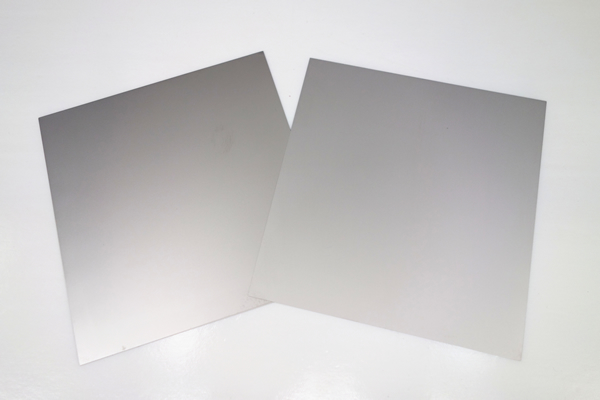

Size: Thickness0.01mm~0.1mm×Width10mm~600mm×Coil mm;
Products Inquiry

Product Details

Titanium alloys are divided into alpha alloys, near-alpha alloys, alpha and beta alloys, and beta alloys. Grade Ti 15V 3Cr 3Al 3Sn alloy is a beta alloy that can be strip-rolled and heat-treated. It is highly formable, and has good room temperature bending properties. Solution treatment of this alloy enhances its strength.



Standard

Werkstoff No.

UNS

Titanium Alloy Ti 15V-3Cr-3Sn-3Al (Ti 15333)



R58153



Technical Data Sheet

Chemical Composition

Weight %

Ti

Al

Sn

Cr

V

C

Fe

N

O

H

Titanium Alloy Ti 15V-3Cr-3Sn-3Al (Ti 15333)

Balance

2.5~3.5

2.5~3.5

2.5~3.5

14~16

0.08

0.3

0.03

0.15

0.015



Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

ksi

MPa

ksi

MPa

Titanium Alloy Ti 15V-3Cr-3Sn-3Al (Ti 15333)

145

1000

140

966

7
