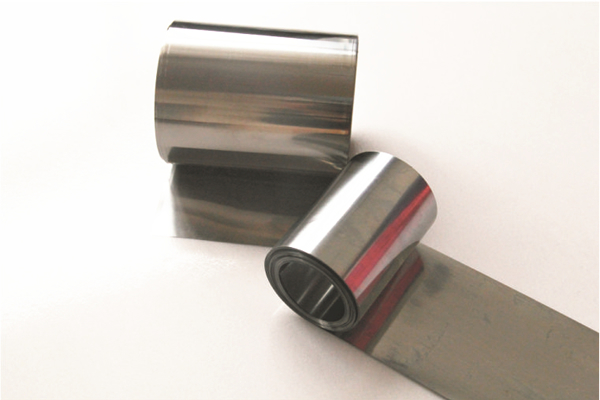

Titanium Alloy Grade7 Ti-0.2Pd Foil

Titanium Grade 7 is the equivilent of Grade 1 but with a palladium addition which imparts a significant improvement in resistance to general and localized crevice corrosion in a wide range of reducing acid environments, including chlorides, and where low pH and high temperatures above 180° F (83° C) to 500° F (260° C) are prevalent.
Size: Thickness0.01mm~0.1mm×Width10mm~600mm×Coil mm;
Products Inquiry

Product Details

Titanium Alloy Grade 7 with 0.1% palladium is similar to Grade 2, but with improved resistance to general and localized crevice corrosion in a wide range of reducing acid environments, including chlorides, and where low pH and high temperatures above 180ºF (83ºC) to 500ºF (260ºC) are prevalent.

Standard Specification:  ASTM B265 Gr7 ASME SB265 Gr7Sheet/plate;

Standard

Werkstoff No.

UNS

Titanium Alloy Grade7 Ti-0.2Pd

3.7235

R52400



Technical Data Sheet

`Chemical Composition

Weight %

Ti

Pd

C

Fe

N

O

H

Titanium Alloy Grade7 Ti-0.2Pd

Balance

0.12~0.25

0.08

0.3

0.03

0.25

0.015



Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Titanium Alloy Grade7 Ti-0.2Pd

50

345

40

275

20

30
