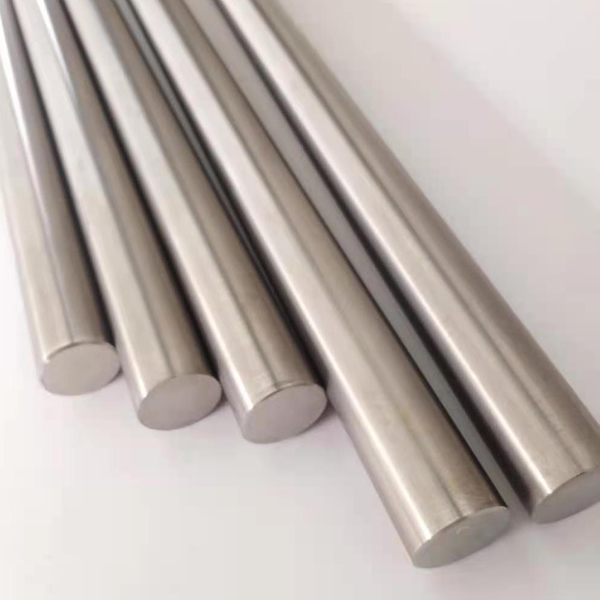

AMS Titanium Alloy 8-1-1 ( 8Al-1Mo-1V) Bar and Rod

1.Titanium 8-1-1 (8Al-1Mo-1V) is a near alpha alloy offering good weld ability and with superior creep resistance at operating temperature up to 450°C. Alloy 8-1-1 has a relatively high tensile modulus to density ratio and is used primarily in engine applications such as forged compressor blades and disks.
2.Size: Φ7mm~Φ230mm;
Products Inquiry

Product Details

Titanium 8-1-1 (8Al-1Mo-1V) is a near alpha alloy offering good weldability and with superior creep resistance at operating temperature up to 450°C. Alloy 8-1-1 has a relatively high tensile modulus to density ratio and is used primarily in engine applications such as forged compressor blades and disks.

Standard Specification:

AMS-T-9047 8Al-1Mo-1v bar;

MIL-T-9047G 8Al-1Mo-1V bar;





Standard

Werkstoff No.

UNS

AMS Titanium Alloy 8-1-1 / 8Al-1Mo-1V

3.7134

R54810



Technical Data Sheet

Chemical Composition

Weight %

Ti

Al

Mo

V

C

Fe

N

O

H

Other

AMS Titanium Alloy 8-1-1 / 8Al-1Mo-1V

Balance

7.35~8.35

0.75~1.25

0.75~1.25

0.08

0.30

0.05

0.2

0.0150

0.4 Total Max.



Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

eduction of Area

Min %

ksi

MPa

ksi

MPa

Titanium Alloy 8-1-1 / 8Al-1Mo-1V

130

896

120

827

10

20
