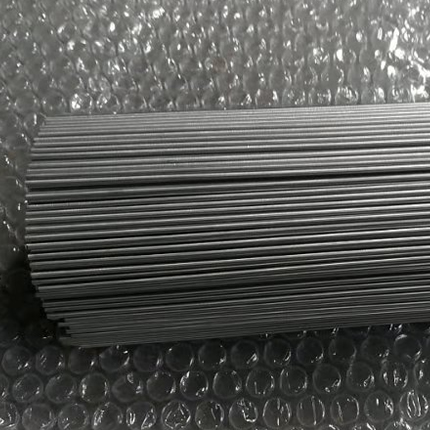

T Titanium Alloy Grade5 Ti-6Al-4V Ti-6Al-4V alloy is the most widely used titanium alloy of the alpha-plus-beta class,and is also the most common of all titanium alloys. The alloy is castable and is utilized "as cast" in sporting goods. The wrought material is used in aerospace, medical, and other applications where moderate strength, good strength to weight,and favorable corrosion properties are required.
Standard Specification: ASTM B863, ASME SB863, ASTM F136, ISO, DIN AMS-T-9046 CP4 / AMS 4940;
Standard |
Werkstoff No. |
UNS |
Titanium Alloy Grade5 Ti-6Al-4V |
3.7165 |
R56400 |
Technical Data Sheet
Chemical Composition |
|||||||||
Weight % |
Ti |
Al |
V |
C |
Fe |
N |
O |
H |
|
Titanium Alloy Grade5 Ti-6Al-4V |
Balance |
5.5~6.75 |
3.5~4.5 |
0.08 |
0.4 |
0.05 |
0.2 |
0.015 |
Typical Mechanical Properties (Tensile Requirements)
Material |
Tensile Strength, min |
Yield Strength (0.2% Offset) min or range |
Elongation in 4D,min% |
Reduction of Area Min % |
||
ksi |
MPa |
ksi |
MPa |
|||
Titanium Alloy Grade5 Ti-6Al-4V |
130 |
895 |
120 |
828 |
10 |
25 |
