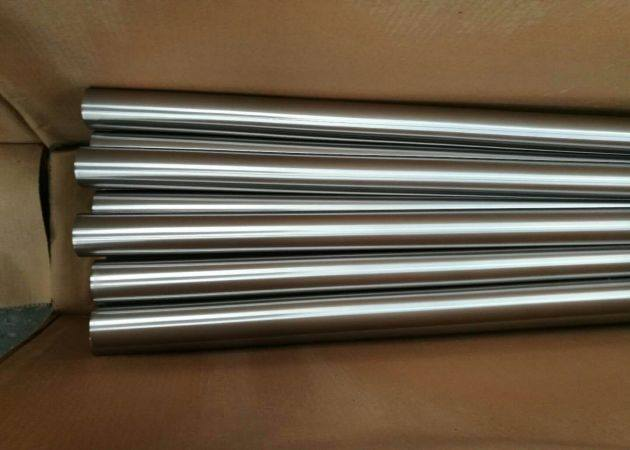

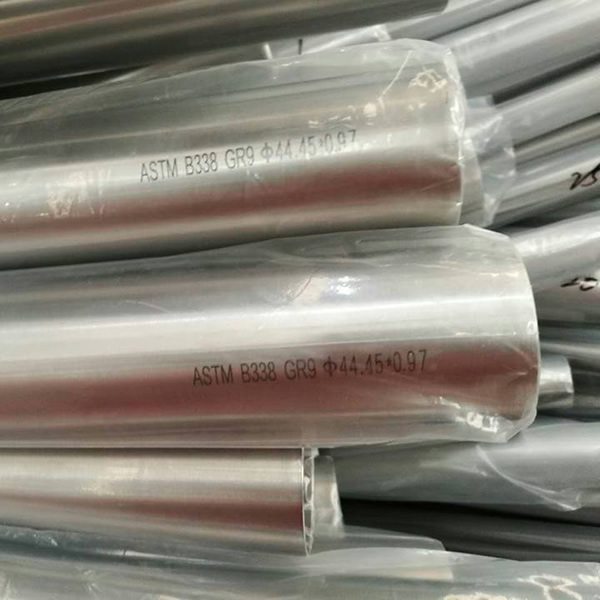

Titanium Bicycle Tubing and Pipe for exhaust and Frame

Titanium seamless and welded tubing and pipes are used for all kinds of Bicycle and frame;
Size: Outer Diameter: Φ2mm~Φ120mm;Wall Thickness 0.1~3mm etc.;
Titanium Grade: Titanium Grade2, Titanium Grade5, Titanium Grade9 etc;
Standard: ASTM B338, ASTMB861, ASTM B862, AMS 4944, AMS 4945;
Products Inquiry

Product Details

GOOLEE can provideTitanium Bicycle Tubing and Pipe for exhaust and Frame

Standard

Werkstoff No.

UNS

Commercial Pure Titanium Grade1

3.7025

R50250

Commercial Pure Titanium Grade2

3.7035

R50400

Titanium Alloy Grade9

3.7195

R56320



Technical Data Sheet

Chemical Composition

Weight %

Ti

Al

V

Mo

Ni

Pd

C

Fe

N

O

H

Commercial Pure Titanium Grade1

Balance

~

~

~

~

~

0.08

0.2

0.03

0.15

0.015

Commercial Pure Titanium Grade2

Balance

~

~

~

~

~

0.08

0.3

0.03

0.25

0.015

Titanium Alloy Grade9

Balance

2.5~3.5

2~3

~

~

~

0.08

0.25

0.03

0.15

0.015



Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Commercial Pure Titanium Grade1

35

240

20

138

24

30

Commercial Pure Titanium Grade2

50

345

40

275

20

30

Titanium Alloy Grade9

50

345

40

275

20

30
