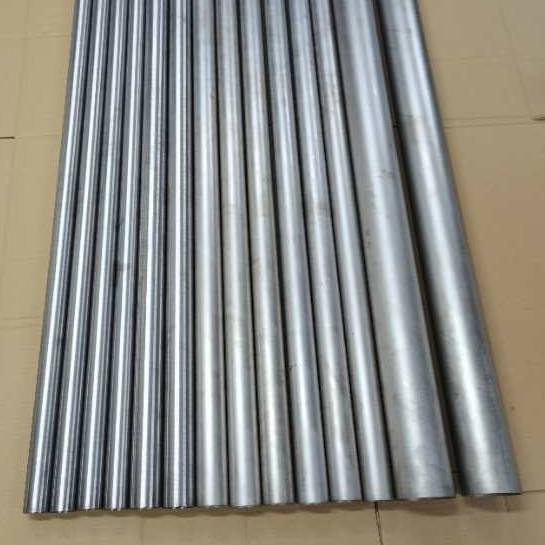

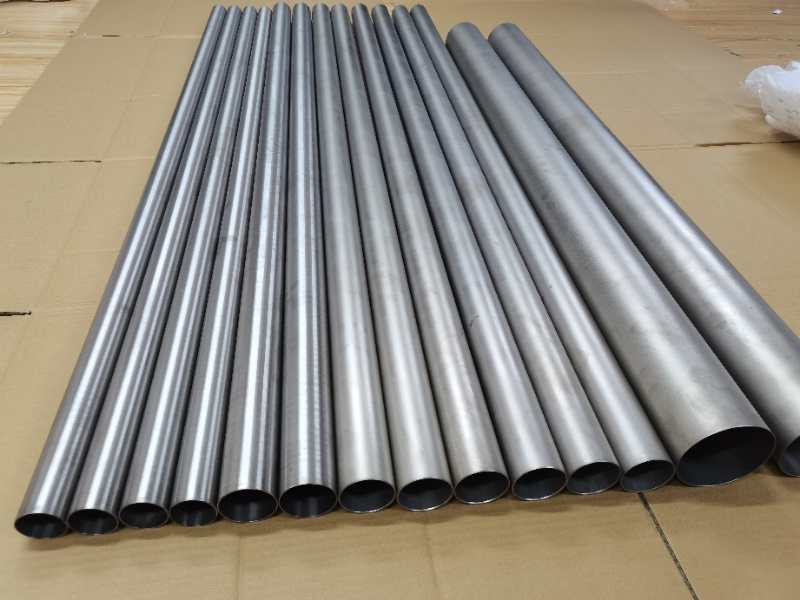

Commercial Pure Titanium Grade 3 Tube and Pipes

Titanium Alloy Grade 3 is “unalloyed” titanium offering improved strength, moderate ductility, and ASME Code design allowables. The material is readily weldable.
1.Size: Outer Diameter5mm~114mm×Wall Thickness0.5mm~10mm×Length25000mm;
2.Standard:ASMESB338;ASTM B861; ASTM B862;AMS4942;AMS4945;AMS4944;AMS4943; GB/T3625;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Titanium Alloy Grade 3 is “unalloyed” titanium offering improved strength,

moderate ductility, and ASME Code design allow ables. The material is readily

weld able. This material is very corrosion resistant in highly oxidizing and

mildly reducing environments.

Standard: ASMESB338; ASTM B861; ASTM B862;AMS4942;AMS4945;AMS4944;AMS4943; GB/T3625;

Standard	Werkstoff No.	UNS
Commercial Pure Titanium Grade3	3.7055	R50550

Technical Data Sheet

Chemical Composition
Weight %	Ti	C	Fe	N	O	H
Commercial Pure Titanium Grade3	Balance	0.08	0.3	0.05	0.35	0.015

Typical Mechanical Properties (Tensile Requirements)

Material

Tensile Strength, min

Yield Strength (0.2% Offset) min or range

Elongation in 4D,min%

Reduction of Area

Min %

ksi

MPa

ksi

MPa

Commercial Pure Titanium Grade3

450

380
