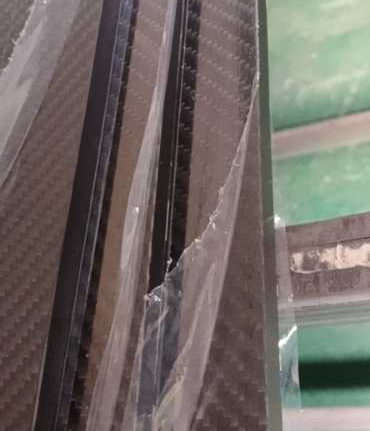

Carbon Fiber Plate

Products Name

CARBON FIBER T650

Carbon WeaveFiber parameters

WarpType

TC-33

Number of filaments

3000

Weft Type

TC-33

Fiber Diameter

7µm

  Weight (g/m2)

200+0.5

Fiber Unit Weight

200mg/m

      Thickness(mm)

0.23±0.1

Tensile strength

3450MPa

Effective width(mm)

1000

Tensile modulus

230GPa

Actual width(mm)

1020

Elongation

1.5%

Length(Meter)

100

Resin parameters

Resin Brand

Solvay Cytec Cycom

Viscosity

40000~55000cps

Curing temperature

115~135℃

Curing Time

5~18 Min

Elongation at break

3%

tensile strength

71MPa

Storage Time

Under 25℃

≤30 Days

Bending strength

145MPa

Prepreg parameters

Fabric structure

Twill

Resin Content %

42+0.5

Mass per unit area (g/m2)

345±1

Thickness

0.28±0.01

Front packaging material

Polyethylene film

Bottom packaging material

Release paper

Conclusions

Comply with Standard
