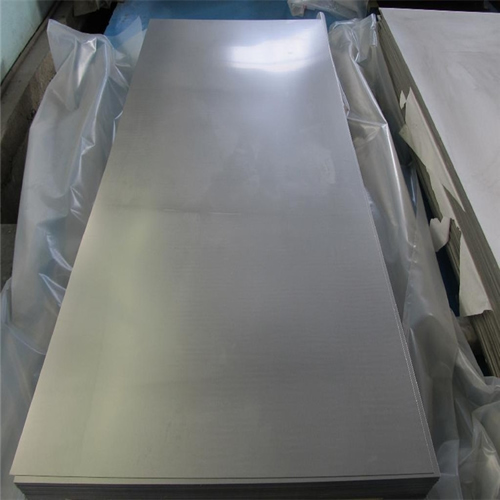

Fe white copper Plate

The addition of Fe and Mn in B10 and B30 alloys greatly improves the corrosion resistance of this material. In clean seawater, the alloy can accept water flow rates up to 2.2-2.5%/s. The maximum acceptable speed in the salt solution can reach 4m/s. The alloy can avoid stress corrosion cracking and high temperature point denickel. Therefore, the alloy has good corrosion resistance to clean or polluted sea water and river bay water, and is widely used in heat exchangers that use sea water in power stations, desalination, petrochemical plants, etc.

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Hard Condition: M (soft state), Y2 (1/2 hard), Y (hard);

Size: Thickness0.5mm~80mm×Width10mm~1200mm×Length2000mm~mm;

Grade comparison table

China	ISO	USA	Japan	France	UK	Germany
BFe10-1-1	MHЖMЦ10-1-1	C70600	CN102		CuNi10Fe	C7060
BFe30-1-1	MHЖMЦ30-1-1	C71640	CN107	CuNi30Mn1Fe	CuNi10Fe	C7060

Chemical Composition Table

Alloy Grade	Ni+Co	Fe	Mn	Zn	Al	Si	Mg	Pb	S	C	P	Cu	Total impurities
BFe10-1-1	9.0-11.0	1.0-1.5	0.5-1.0	0.3		0.15		0.02	0.01	0.05	0.006	Balance	0.7
BFe30-1-1	29.0-32.0	0.5-1.0	0.5-1.2	0.3		0.15		0.02	0.01	0.05	0.006	Balance	0.7

Physical performance table

Performance	Alloy Grade
	BFe30-1-1White Copper
Liquidus point /℃	1231.7
Solid point /℃	1171.6
Specific heat capacity /J·（kg·K）-1
20-100℃linear expansion coefficient /℃-1	16x10-6
Thermal conductivity（20℃）/W·（m·K）-1	37.3
Density/kg·m-3	8900
Resistivity（20℃）/μΩ·m	420
Temperature Coefficient of Resistance /℃-1	20.012
Elastic Modulus /GPa	154

Grades, characteristics and applications

Alloy Grade	Main features	Application examples
BFe10-1-1	It is a structural iron-nickel alloy with less nickel. Compared with BFe30-1-1, it has higher strength and hardness on the sole, but higher plasticity and similar corrosion resistance	Mainly used in the shipbuilding industry to replace BFe30-1-1 to make condensers and other corrosion-resistant parts
BFe30-1-1	It is a structural copper-nickel alloy with good mechanical properties, high corrosion resistance in sea water, fresh water and steam, but poor workability.	It is used to make pipes for condensers and thermostats working under high temperature, high pressure and high speed conditions in the marine shipbuilding industry.
