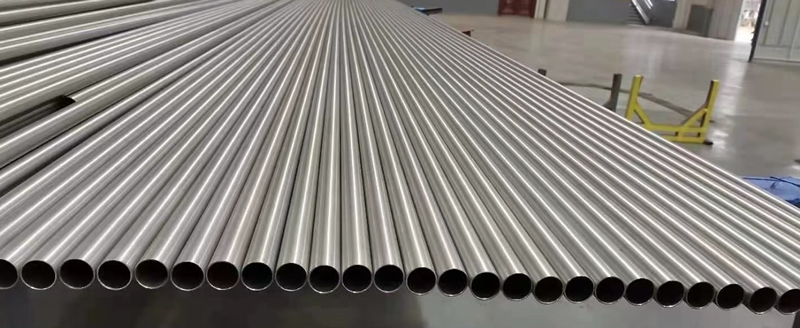

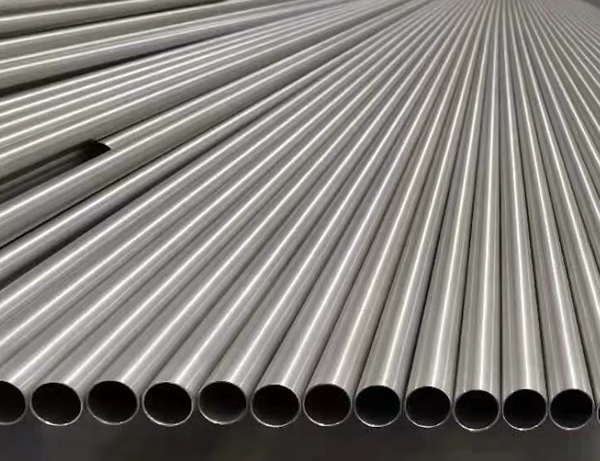

Tantalum and Tantalum Tubes and Pipes

Tantalum mainly exists in tantalite and co-exists with niobium. Tantalum has moderate hardness [1] and is malleable. It can be drawn into a thin wire-like foil. Its thermal expansion coefficient is very small. Tantalum has excellent chemical properties and high corrosion resistance. It can be used to make evaporating vessels, etc., as well as electrodes, rectifiers, and electrolytic capacitors of electron tubes. Medically used to make thin sheets or thin threads to repair damaged tissues. Although tantalum has strong corrosion resistance, its corrosion resistance is due to the stable tantalum pentoxide (Ta₂O₅) protective film formed on the surface.

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

1. Specification: RO5200，RO5400，RO5252(Ta-2.5W)，RO5255(Ta-10W)

2. Diameter Size: ODΦ2mm~Φ100mm; Wall Thickness 0.2~5mm×Length100~12000mm;

3. Standard: ASTM B521;

Chemical Composition

Content %
Tantalum Grade	Main Composition	The impurity content is not more than
Tantalum Grade	Ta	Nb	Fe	Si	Ni	W	Mo	Ti	Nb	O	C	H	N
Ta1	Balance	~	0.005	0.005	0.002	0.01	0.1	0.002	0.03	0.015	0.01	0.0015	0.01
Ta2	Balance	~	0.03	0.02	0.005	0.04	0.3	0.005	0.1	0.02	0.01	0.0015	0.01
TaNb3	Balance	＜3.5	0.03	0.03	0.005	0.04	0.3	0.005	~	0.02	0.01	0.0015	0.01
TaNb20	Balance	17~23	0.03	0.03	0.005	0.04	0.3	0.005	~	0.02	0.01	0.0015	0.01
Ta2.5W	Balance	~	0.005	0.005	0.002	3.0	0.1	0.002	0.04	0.015	0.01	0.0015	0.01
Ta10W	Balance	~	0.005	0.005	0.002	11	0.1	0.002	0.04	0.015	0.01	0.0015	0.01
If the user has special requirements, the two parties specifically negotiate

Tolerance Outer Diameter and Wall Thickness

Outer Diameter, inch (mm)	Outer Tolerance ,inch(mm)+/-	WallTolerance，％，+/-
<1 (25.4)	0.004 (0.102)	5
1~1.5 (25.4~38.1)	0.005 (0.127)	5
1.5~2 (38.1~50.8)	0.006 (0.152)	5
2~2.5 (50.8~63.5)	0.007 (0.178)	5
2.5~3.5 (63.5~88.9)	0.008 (0.254)	5

Mechanical properties, annealing

Tantalum Grade	Rm Tensile Strength Min. Lb/inch2（MPa）	Yield Strength Min. Lb/inch2（MPa）	Elongation %
RO5200/RO5400	25000 (172)	15000 (103)	25
RO5252	40000 (276)	28000 (193)	20
RO5255	70000 (482)	55000 (379)	20
RO5240	35000 (244)	15000 (103)	25

If there are special requirements, the two parties will make specific agreement.
