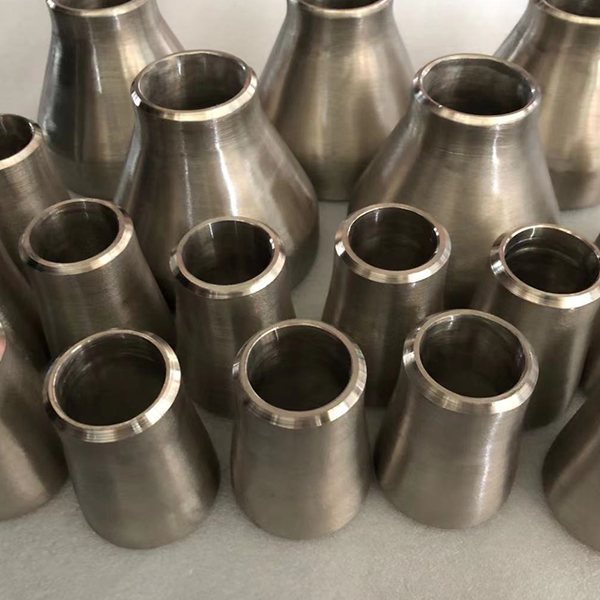

3.Zirconium and Zirconium Alloy Reducers

Products Inquiry

Product Details

Types

Concentric |Eccentric

seamless or welded

Standards

ASTM B653 ASME SB653 ASME B16.25 ;ASME B16.28 ;MSS SP-43

Size

Outside diameter: 1/2'' - 24" (21.34-609.5mm) wall thickness: sch 5S, 10S, 40S (STD), 80S (XS), 160S (XXS) (1.65-59.51mm)

Materials

UNS R60700; UNS R60702; UNS R60704; UNS R60705; UNS R60706

Reducers

Pipe size

Outside Diameter

Center-to-End

Large End

Small End

Large End

Large End

3/4"

3/8"

26.7

17.3

38

1/2"

21.3

1"

1/2"

33.4

21.3

51

3/4"

26.7

1 1/4"

1/2"

44.2

21.3

51

3/4"

26.7

1"

33.4

1 1/2"

1/2"

48.3

21.3

64

3/4"

26.7

1"

33.4

1 1/4"

42.2

2"

1/2"

60.3

26.7

76

3/4"

33.4

1"

42.2

1 1/2"

48.3

21/2"

1"

73

33.4

89

1 1/4"

42.2

1 1/2"

48.3

2"

60.3

3"

1 1/4"

88.9

42.2

89

1 1/2"

48.3

2"

60.3

21/2"

73.0

3" 1/2"

1 1/2"

101.6

48.3

102

2"

60.3

21/2"

73.0

3"

88.9

4"

1 1/2"

114.3

48.3

102

2"

60.3

21/2"

73.0

3"

88.9

3" 1/2"

101.6

5"

2"

141.3

60.3

127

21/2"

73.0

3"

88.9

31/2"

101.6

4"

114.30

6"

21/2"

168

73.0

140

3"

88.9

31/2"

101.6

4"

114.30

5"

141.3

8"

31/2"

291.1

88.9

152

4"

101.6

5"

114.30

6"

141.3



168.3

10"

4"

273

101.6

178

5"

114.30

6"

141.3

8"

168.3



219.1

12"

5"

323.8

114.30

203

6"

141.3

8"

168.3

10"

219.1



273.0

14"

6"

355.6

141.3

330

8"

168.3

10"

219.1

12"

273.0



323.8

16"

8"

406.4

168.3

356

10"

219.1

12"

273.0

14"

323.8



355.6

18"

8"

457

219.1

381

10"

273.0

12"

323.8

14"

355.6

16"

406.4

20"

8"

508

219.1

508.0

10"

273.0

12"

323.8

14"

355.6

16"

406.4

18"

457.0

22"

10"

559.0

273.0

508.0

12"

323.8

14"

355.6

16"

406.4

18"

457.0

20"

508.0

24"

10"

610.0

273.0

508

12"

323.8

14"

355.6

16"

406.4

18"

457.0

20"

508.0

22"

559.0
