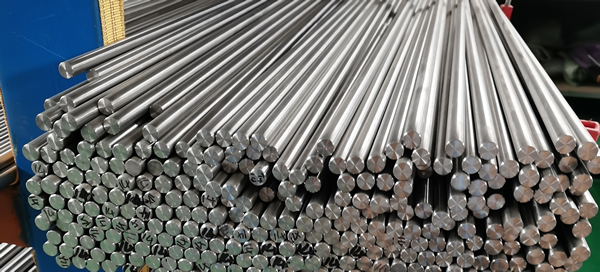

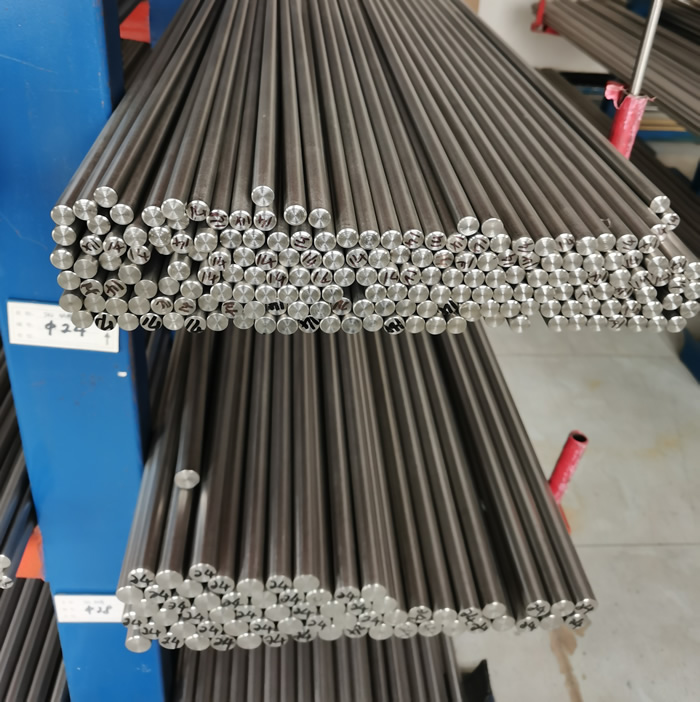

1.4Zirconium Alloys UNS R60705 Bar and Rod

1.UNS R60705 (Zr5, Zirconium-Niobium alloy): Zr-2.5%Nb, Zr+Hf≥95.5, O≤0.18;
2.Zirconium has excellent corrosion resistance to various acids, alkalis and salts;
3.Size: Φ7mm~Φ150mm;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

Standard:ASTM B550, ASME SB550; ASTM B551, ASME SB551;

Standard	Werkstoff No.	UNS
Zirconium Alloy UNS R60705	~	R60705

Technical Data Sheet

Chemical Composition
Weight %	Zirconium + Hafnium, min	Hafnium, max	Iron + Chromium, max	Tin	Hydrogen, max	Nitrogen, max	Carbon, max	Niobium (Columbium)	Oxygen, max
Zirconium Alloy UNS R60705	95.5	4.5	0.2	~	0.005	0.025	0.05	2.0~3.0	0.18

Typical Mechanical Properties (Tensile Requirements)

Material	Tensile Strength, min		Yield Strength (0.2% Offset) min or range		Elongation in 4D,min%
Material	ksi	MPa	ksi	MPa	Elongation in 4D,min%
Zirconium Alloy UNS R60704	80	550	55	380	16

Zirconium and Copper Clad Bar

Zirconium and Copper Clad Bar, which is a layer of Zirconium coated with a certain thickness on the copper rod, is the main component of the metal anode. It combines the excellent conductivity of cop

Zirconium and Zirconium Alloy Hexagon Bar

Standard Zirconium Grade Condition of Delivery Tolerance Dimensions

Zirconium and Zirconium Alloy Flat Bar
