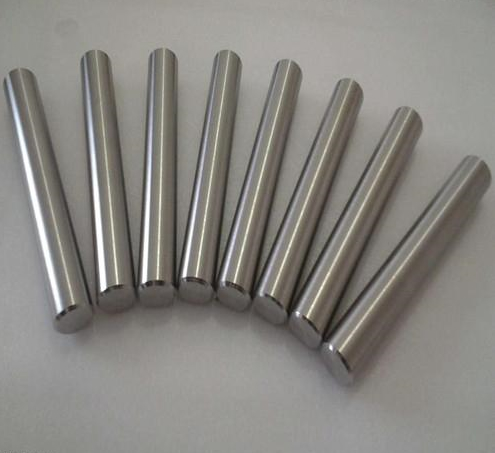

Commercial Pure Zirconium UNS R60700 Bar and Rod

1.Commercially pure Zirconium UNS R60700, Zr+Hf≥99.2,
2.Zirconium has excellent corrosion resistance to various acids, alkalis and salts;
3.Size: Φ7mm~Φ150mm;

Products Inquiry

CompanyName * :

Email * :

Name :

Tel :

Message :

Product Details

ASTM B550, ASME SB550; ASTM B551, ASME SB551;

Standard:

Standard	Werkstoff No.	UNS
Commercial Pure Zirconium UNS R60700	~	R60700

Technical Data Sheet

Chemical Composition
Weight %	Zirconium + Hafnium, min	Hafnium, max	Iron + Chromium, max	Tin	Hydrogen, max	Nitrogen, max	Carbon, max	Niobium (Columbium)	Sn	Oxygen, max
Commercial Pure Zirconium UNS R60700	99.2	4.5	0.2	~	~	0.025	0.05	~	~	0.16

Typical Mechanical Properties (Tensile Requirements)

Material	Tensile Strength, min		Yield Strength (0.2% Offset) min or range		Elongation in 4D,min%
Material	ksi	MPa	ksi	MPa	Elongation in 4D,min%
Commercial Pure Zirconium UNS R60700	55	380	44	305	2
